The Nitecore NWH20 is a rechargeable work headlamp with up to 600 lumens of 4500K neutral-white light and an 89 m beam distance. Four quad-core UHE LEDs provide spotlight, floodlight and mixed lighting. The ZOOM button adjusts the beam electronically on Low, Mid and High, while Turbo and Ultralow use fixed beam patterns.

Five white-light levels, two red-light levels, SOS, Beacon and red slow flashing cover hands-free work and signalling. The included 4000 mAh WLB40 battery is removable and charges through its own USB-C port in approximately four hours with a 5V/1A supply. Maximum runtime is 51 hours at 40-lumen white Ultralow or 68 hours at 5-lumen red Low; output varies with heat and use.

A 160° adjustable head, anti-slip headband and four supplied hard-hat clips help position the light for inspection and maintenance. The reinforced-composite lamp weighs 149 g with its battery and headband, is IP66-rated and is impact resistant to 2 m. Electronic lockout helps prevent accidental activation during transport. Follow the manual's battery and safety instructions.

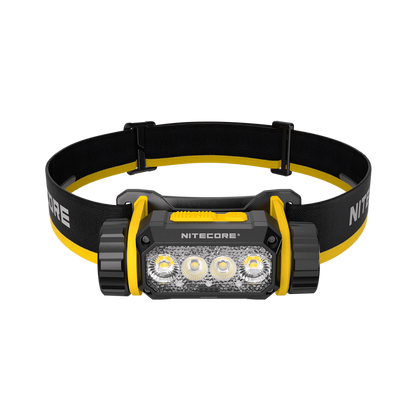

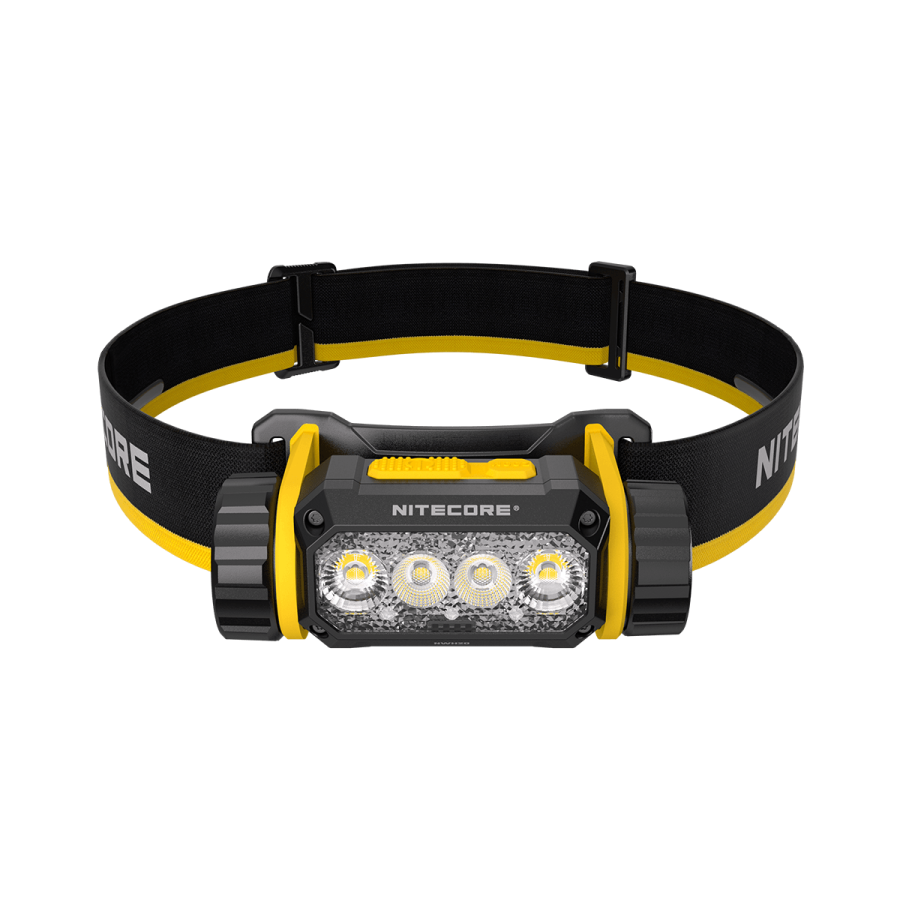

  • Nitecore NWH20 headlamp front view with yellow protective accents

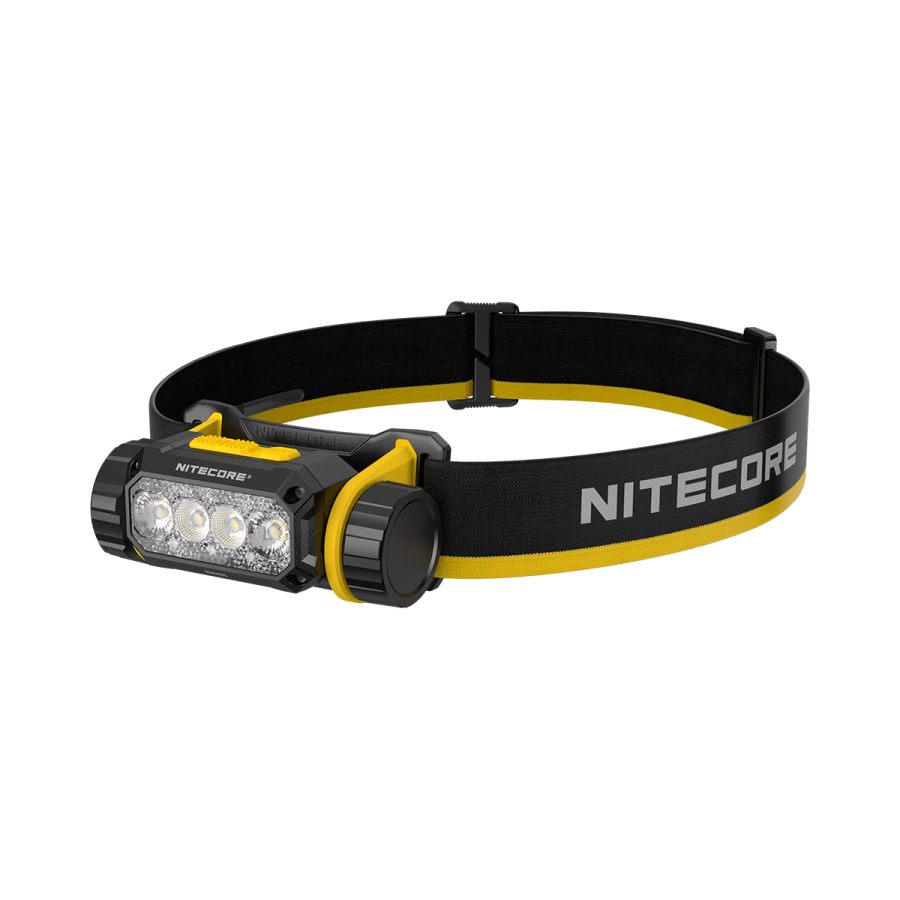

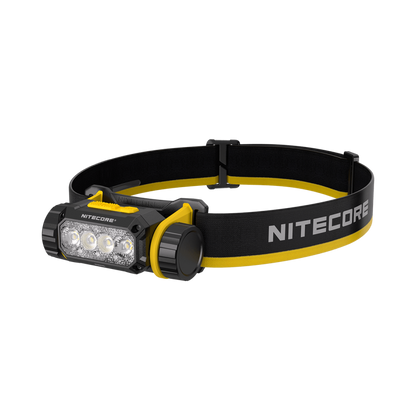

  • Nitecore NWH20 headlamp angled view with black and yellow headband

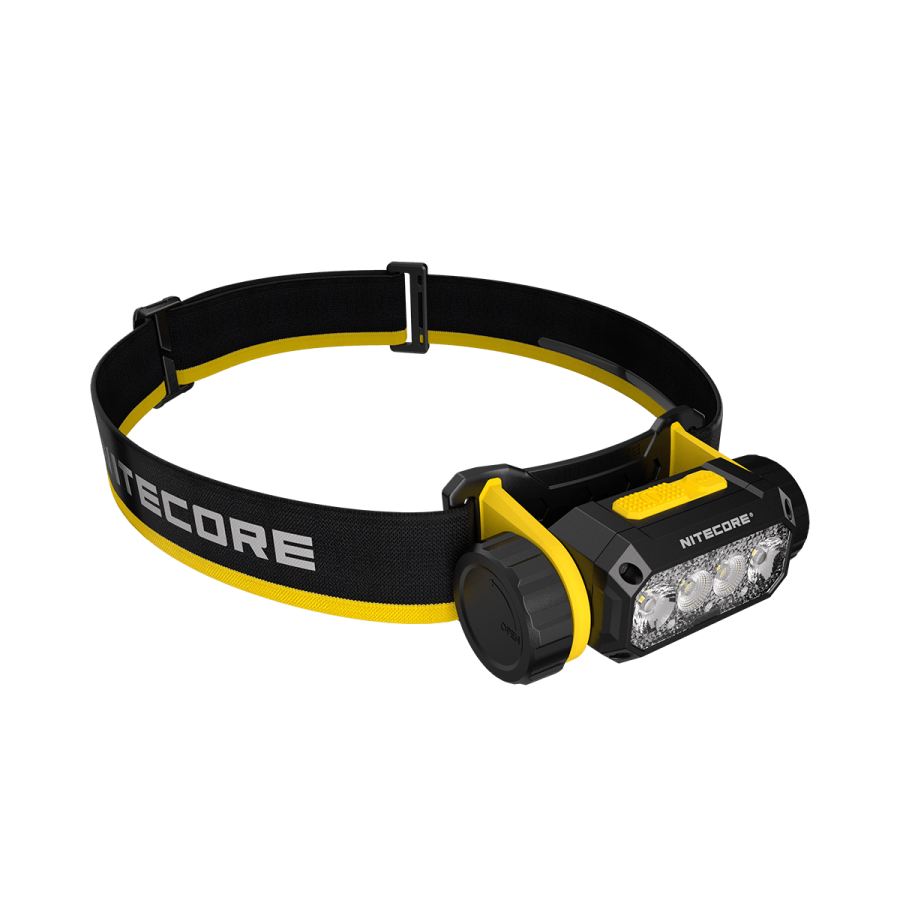

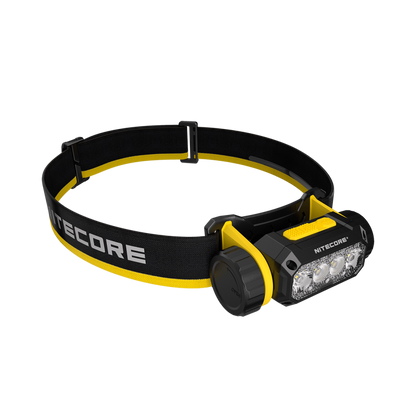

  • Nitecore NWH20 headlamp opposite angled view showing side cap

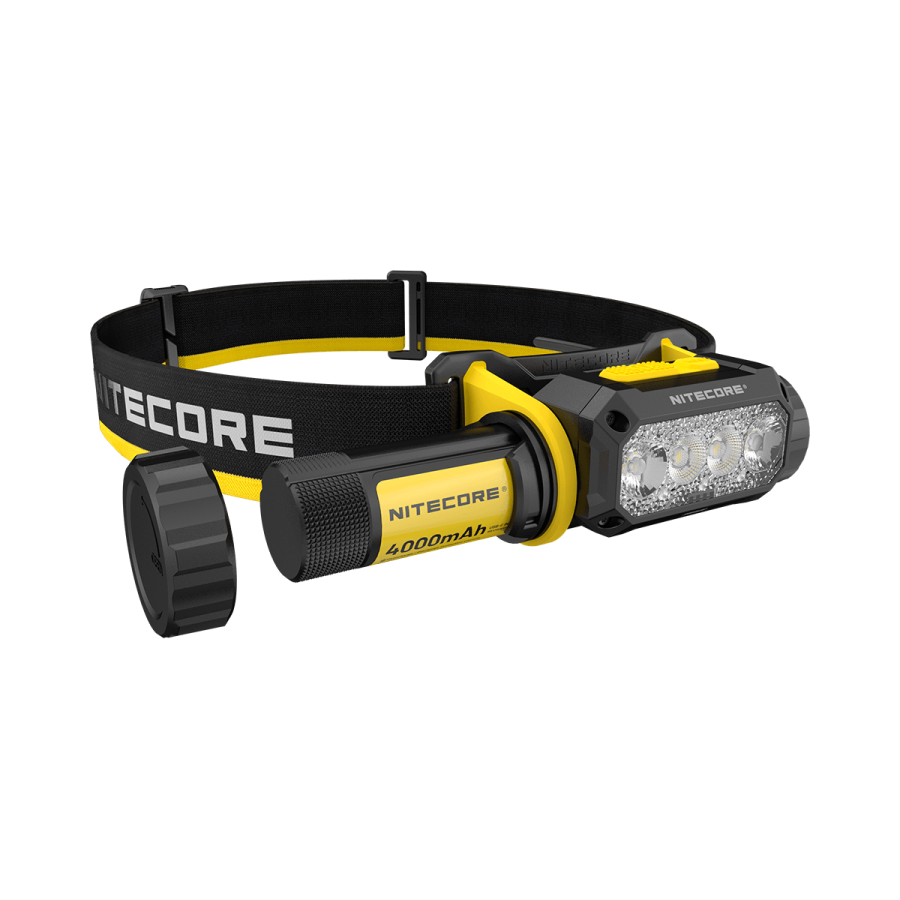

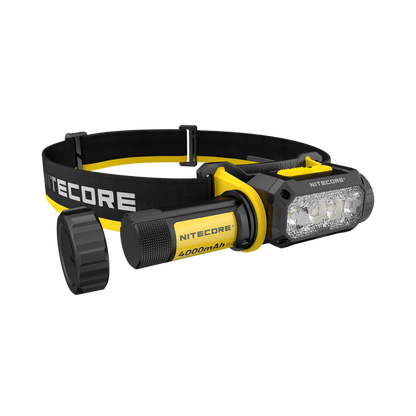

  • Nitecore NWH20 headlamp with battery cap removed and battery visible
1 4

Max Lumens of 600

51 h white Ultralow (40 lm); 68 h red Low (5 lm) of runtime

89 meter throw
Free Shipping Delivered to Your doorstep, on us!
No Worries Hassle Free Returns
Secure Checkout Pay it Your Way

Product details

1

Best For

For equipment maintenance, inspections, repairs and other hands-free work. Switch between focused and broad illumination on Low, Mid and High, or blend the two electronically. The tilting head and included hard-hat clips help position the beam; the helmet itself is not included.

Best uses for Nitecore NWH20

Performance Specifications

Max Lumens600 lm
Max Beam Distance89 m
Peak Intensity1982 cd
Beam PatternElectronic floodlight, spotlight or mixed; adjustable on Low, Mid and High
Color Temperature4,500K neutral white
LED Type4 × quad-core NiteLab UHE LEDs; auxiliary red light
Beam ColorNeutral white and red
Performance Specifications for Nitecore NWH20

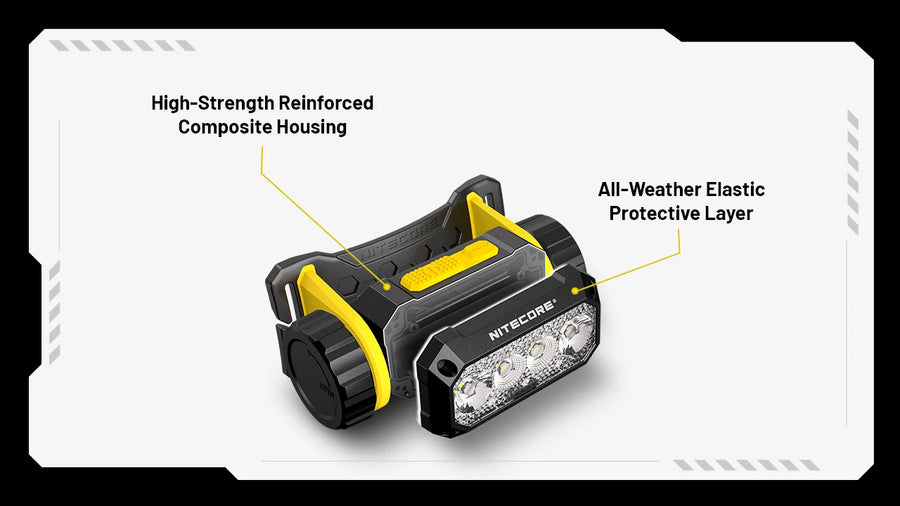

Build Quality

Dimensions92 × 44 × 51mm, bracket included
Weight149g, headband and WLB40 battery included; 84g, headband included without battery
MaterialReinforced-composite body and bracket; elastic protective outer layer
Waterproof RatingIP66
Impact Resistance2m
Build Quality for Nitecore NWH20

Battery, Charging & Runtime

Battery Type1 × NITECORE WLB40 rechargeable Li-ion, 4,000mAh, included
Battery Capacity4000 mAh
Replaceable BatteryYes; NITECORE WLB40 rechargeable pack
Charging TypeUSB-C on removable WLB40 battery
Charging TimeApproximately 4 h at 5 V / 1 A
Maximum Runtime51 h white Ultralow (40 lm); 68 h red Low (5 lm)
Battery ChemistryLi-ion
Battery, Charging & Runtime for Nitecore NWH20

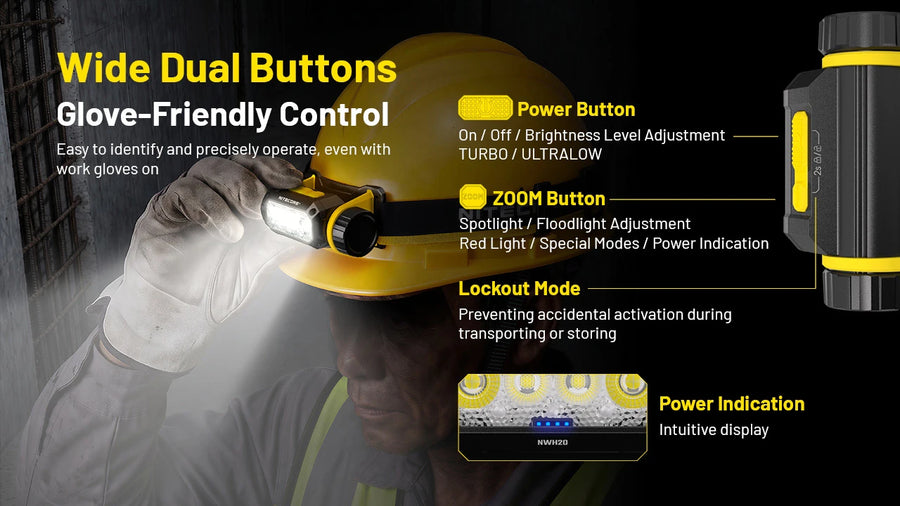

Modes & Interface

Brightness levels5 white levels; 2 red levels
Lighting ModesWhite Turbo, High, Mid, Low and Ultralow; red Low and High; white SOS and Beacon; red slow flashing
Red Light ModeLow: 5 lm / 68 h; High: 20 lm / 16 h; slow flashing: 20 lm / runtime not specified
User InterfacePower and ZOOM buttons; electronic lockout
Mode Operation TypeStepless or preset focus on Low/Mid/High; Turbo mixed and Ultralow flood are fixed
White-light runtimes
ModeOutputRuntime
Turbo600 lm5h 30min
High450 lm7h
Mid300 lm12h
Low150 lm17h
Ultralow40 lm51h
SOS600 lmNot specified
Beacon600 lmNot specified

Manufacturer figures measured to ANSI/PLATO FL 1-2019 using one WLB40 4,000mAh battery at 26°C. Results vary with batteries and conditions. Runtime is a standard test duration, not a promise of constant peak output. Thermal regulation adjusts output; TURBO steps down during prolonged use. A dash means no value is published.

Modes & Interface for Nitecore NWH20

Accessories & Mounting

Mount OptionsHeadband and four hard-hat clips; 160° tilt; helmet not included
Strap AdjustabilityAdjustable headband
Accessories & Mounting for Nitecore NWH20

Special Features

Thermal RegulationATR Advanced Temperature Regulation
Special Features for Nitecore NWH20

Product Identification & Warranty

Warranty Period60-month manufacturer free-repair warranty for qualifying defects; terms and exclusions apply

What's in the Box

  • 1 × NITECORE NWH20 headlamp
  • 1 × NITECORE WLB40 4,000mAh Li-ion battery
  • 1 × USB-C charging cable
  • 1 × Headband
  • 4 × Hard-hat clips
Download the Manual Here
